PRESSURE GAUGE COCK
PRESSURE GAUGE RING SIPHONS
PRESSURE LIMITING VALVE
LEVEL INDICATOR GROUP SET
THERMOMETER CASES AND WELLS
Pressure gauge cock
ITEM 30
Information
Male/female pressure gauge cock
with stuffing box, flange.
Material: brass
Handle: brass
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3
ITEM 30L
Information
Male/female pressure gauge cock
with stuffing box, flange.
Material: brass
Handle: thermo hardening material
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3
ITEM 30S
Information
Male/female pressure gauge cock
with stuffing box, flange and screw
on the flange.
Material: brass
Handle: brass
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 16
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3
ITEM 30SL
Information
Male/female pressure gauge cock
with stuffing box, flange and screw
on the flange.
Material: brass
Handle: thermo hardening material
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 16
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3
ITEM 12
Information
Male/female pressure gauge cock
with stuffing box, flange and screw
on the flange.
Material: brass
Handle: brass
Heavy version with square body.
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 25
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3

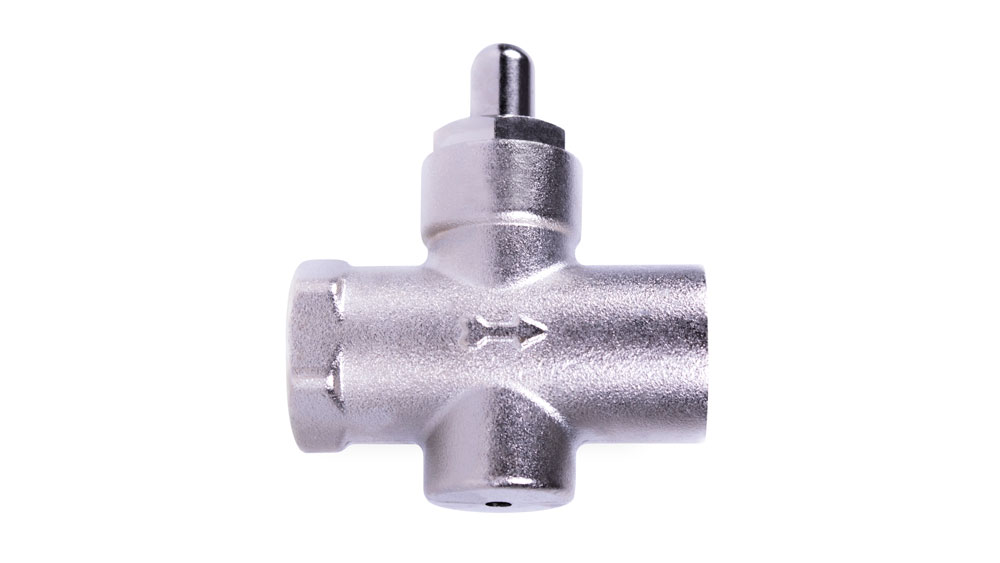

ITEM 34
Information
Female/female pressure gauge cock
with push-button and return spring,
bleed hole, use for gas and liquid.
Material: nickel-plated brass.
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 6
Cat. PED: DIRECTIVE 2014/68/UE
Table.6 & 9 – Art.4 – Paragraph.3

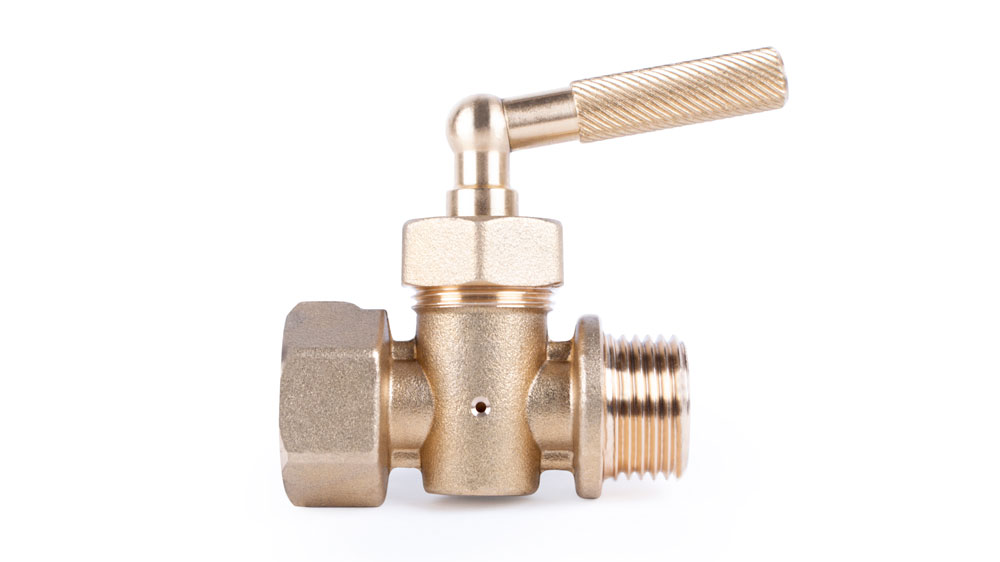

ITEM 30B
Information
Male/female pressure gauge cock
with stuffing box and bleed hole.
Material: brass
Handle: brass
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3

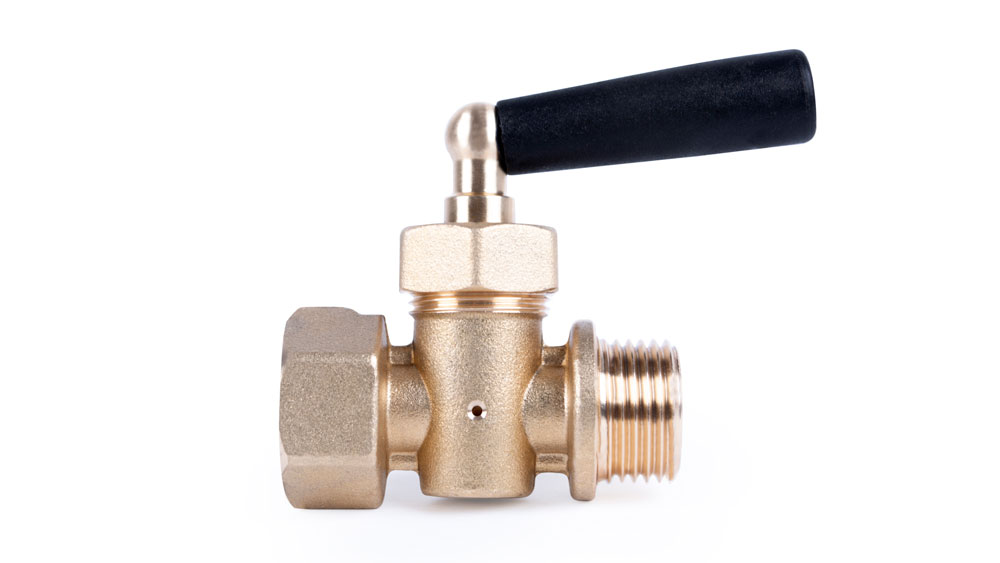

ITEM 30BL
Information
Male/female pressure gauge cock
with stuffing box and bleed hole.
Material: brass
Handle: thermo hardening material
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3
ITEM 31L
Information
Female/female pressure gauge cock
with stuffing box and bleed hole.
Material: brass
Handle: thermo hardening material
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
Table.9 – Art.4 – Paragraph.3
For orders, quotes, and information, please fill out the form.
THERMOMETER CASES AND WELLS - Info & quotation
Pressure gauge ring siphons
ITEM 32B
Information
Pressure gauge ring siphon, fixed male connection, revolving nut female, copper pipe Ø 8 mm.
Fitting: brass
Nickel-plated
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 25
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3
ITEM 32BR
Information
Pressure gauge ring siphon, fixed male connection, revolving nut female, copper pipe Ø 10 mm.
Fitting: brass
Nickel-plated – Heavy version
Technical specifications
DN: 3/8 – 1/2 – BSP
PN: 40
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3
ITEM FB17
Information
Pressure gauge ring siphon, fixed male connection, revolving nut female, carbon steel pipe Ø 10 mm.
Fitting: carbon steel
Tropicalized – Heavy version
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 100
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3
ITEM FB18
Information
Pressure gauge ring siphon, fixed male connection, revolving nut female, stainless steel pipe Ø 10 mm.
Fitting: stainless steel
Heavy version
Technical specifications
DN: 1/4 – 3/8 – 1/2 – BSP
PN: 100
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3
For orders, quotes, and information, please fill out the form.
PRESSURE GAUGE RING SIPHONS - Info & quotation
Pressure limiting valve
ITEM 1 / 1T / 1G
ITEM 1
Straight pressure limiting valve, male
connection, free discharge, calibration
from 0 to 16 bar.
Material: brass
Pressure-containing component: brass
ITEM 1T
Straight pressure limiting valve, male
connection, free discharge, calibration
from 0 to 16 bar.
Material: brass
Pressure-containing component: PTFE
ITEM 1G
Straight pressure limiting valve, male
connection, free discharge, calibration
from 0 to 16 bar.
Material: brass
Pressure-containing component: Rubber SBR
Technical specifications 1/1T/1G
DN: 1/4 – 3/8 – 1/2 -3/4
1’’ – 1’’ 1/4 1’’ 1/2 – 2’’ – BSP
PN: 16
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3

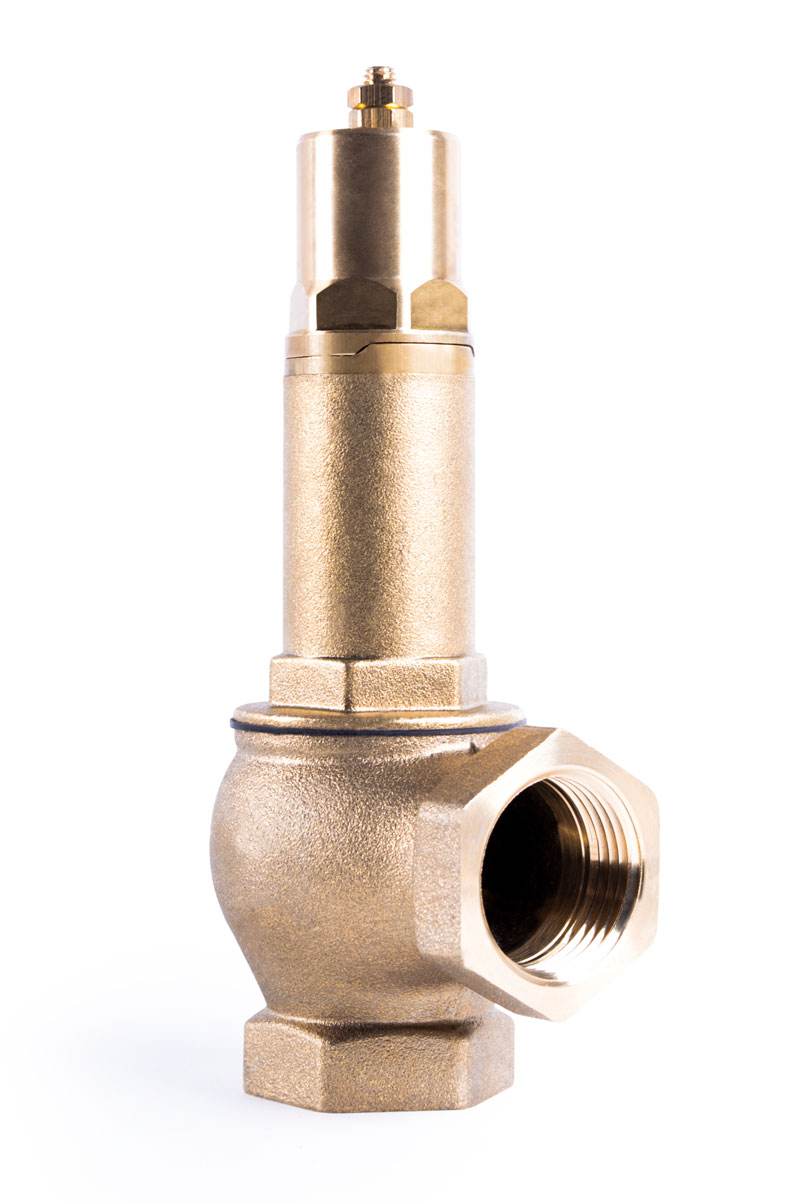

ITEM 2 / 2T / 2G / 2E / 2S
ITEM 2
Elbow pressure limiting valve, female/
female connection, directed discharge,
calibration from 0 to 16 bar.
Material: brass
Pressure-containing component: brass
ITEM 2T
Elbow pressure limiting valve, female/
female connection, directed discharge,
calibration from 0 to 16 bar.
Material: brass
Pressure-containing component: PTFE
ITEM 2G
Elbow pressure limiting valve, female/
female connection, directed discharge,
calibration from 0 to 16 bar.
Material: brass
Pressure-containing component: Rubber SBR
ITEM 2E
Elbow pressure limiting valve, female/
female connection, directed discharge,
calibration from 0 to 16 bar.
Material: brass
Pressure-containing component: EPDM
ITEM 2S
Elbow flow regulation valve, female/
female connection, directed discharge,
calibration from 0 to 16 bar.
Material: brass
Pressure-containing component: PTFE and Fiber gaske
Technical specifications 2/2T/2G/2E/2S
DN: 3/8 – 1/2 – 3/4
1’’ – 1’’ 1/4 – 1’’ 1/2 – 2’’ – BSP / NPT
PN: 16
DN: 2’’ 1/2 – 3’’ – BSP PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
DN ≤ 1’’: Table.6 – Art.4 – Paragraph.3
DN ≥ 1’’ 1/4: Table.6 – Category.1
ITEM 4E
ITEM 4E
Elbow flow regulation valve, female/
female connection, directed discharge
with slam manual opening, calibration
from 0 to 16 bar.
Material: brass
Pressure-containing component: EPDM and Fiber gasket
Technical specifications 4E
DN: 3/8 – 1/2 – 3/4
1’’ – 1’’ 1/4 – 1’’ 1/2 – 2’’ – GAS / NPT
PN: 16
DN: 2’’ 1/2 – 3’’ – GAS PN: 10
Cat. PED: DIRETTIVA 2014/68/UE
DN ≤ 1’’: Tabella 6 – Art 4 – comma 3
DN ≥ 1’’ 1/4: Tabella 6 – Categoria 1
For orders, quotes, and information, please fill out the form.
Pressure limiting valve - Info & quotation
Level indicator group set

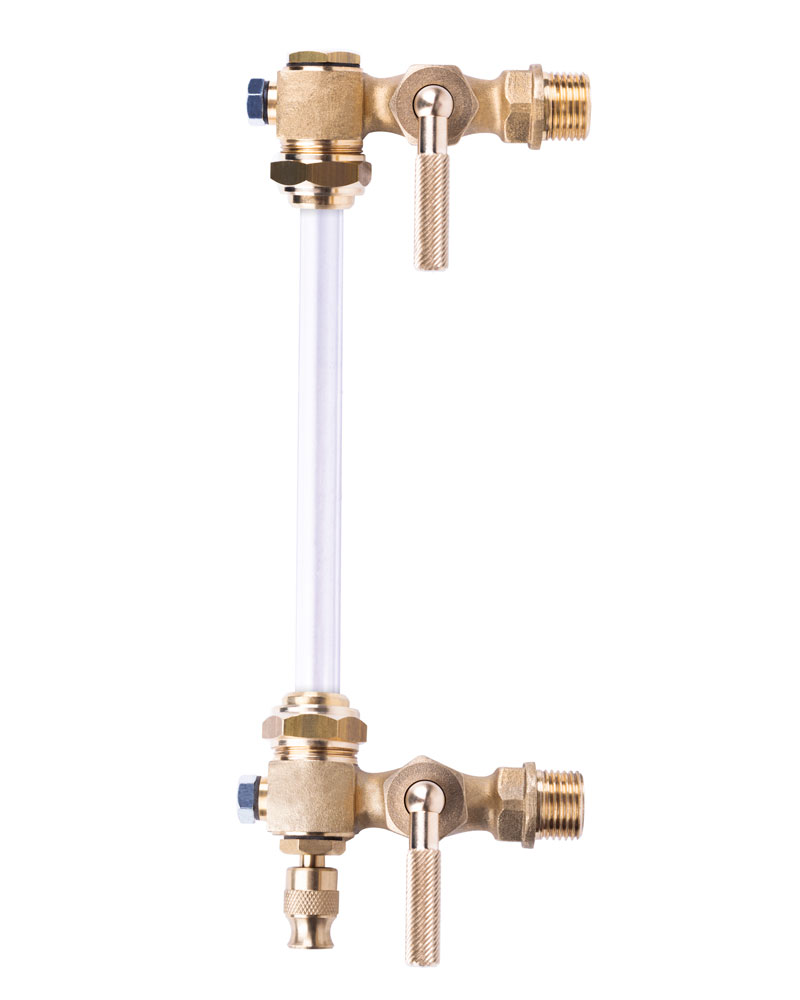

ITEM 21
Information
Level indicator group set, male with stuffing box.
Drain cock double OR seal.
Material: brass
Technical specifications
DN: 1/2 BSP X10/13/16
PN: 16
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3

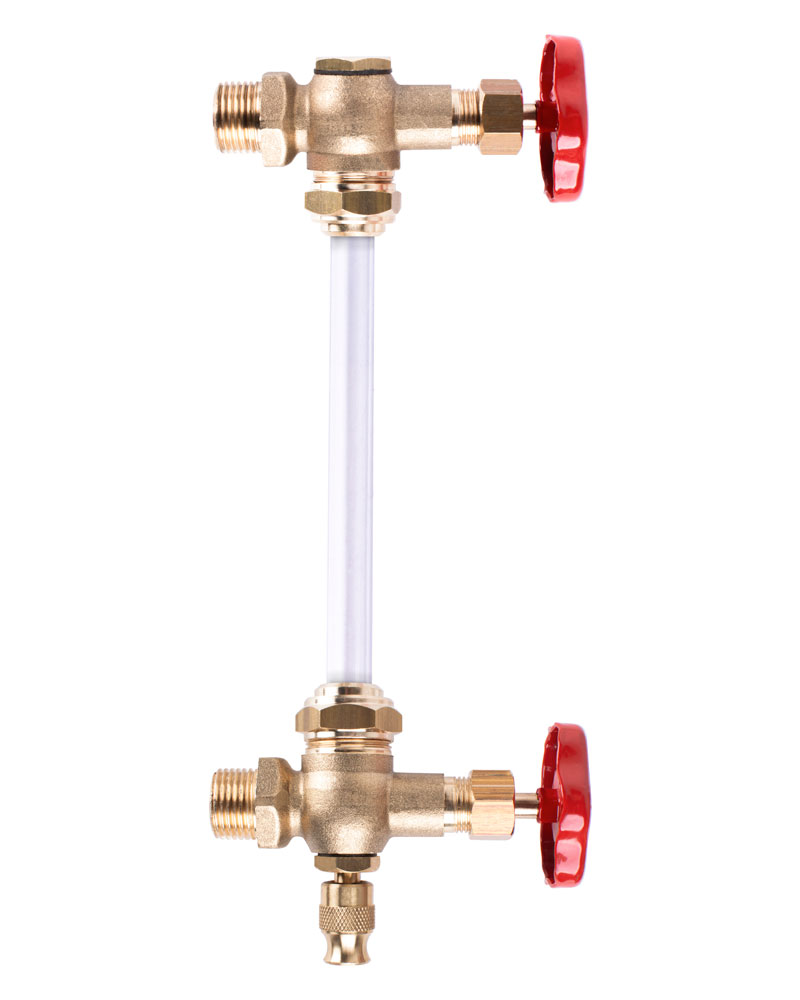

ITEM 24
Information
Level indicator group set, with needle valve.
Drain cock double OR seal.
Material: brass
Technical specifications
DN: 1/2 BSP X10/13 – 14/16
PN: 10
Cat. PED: DIRECTIVE 2014/68/UE
Table.7 – Art.4 – Paragraph.3
For orders, quotes, and information, please fill out the form.
Level indicator group set - Info & Quotation
Thermometer cases and wells

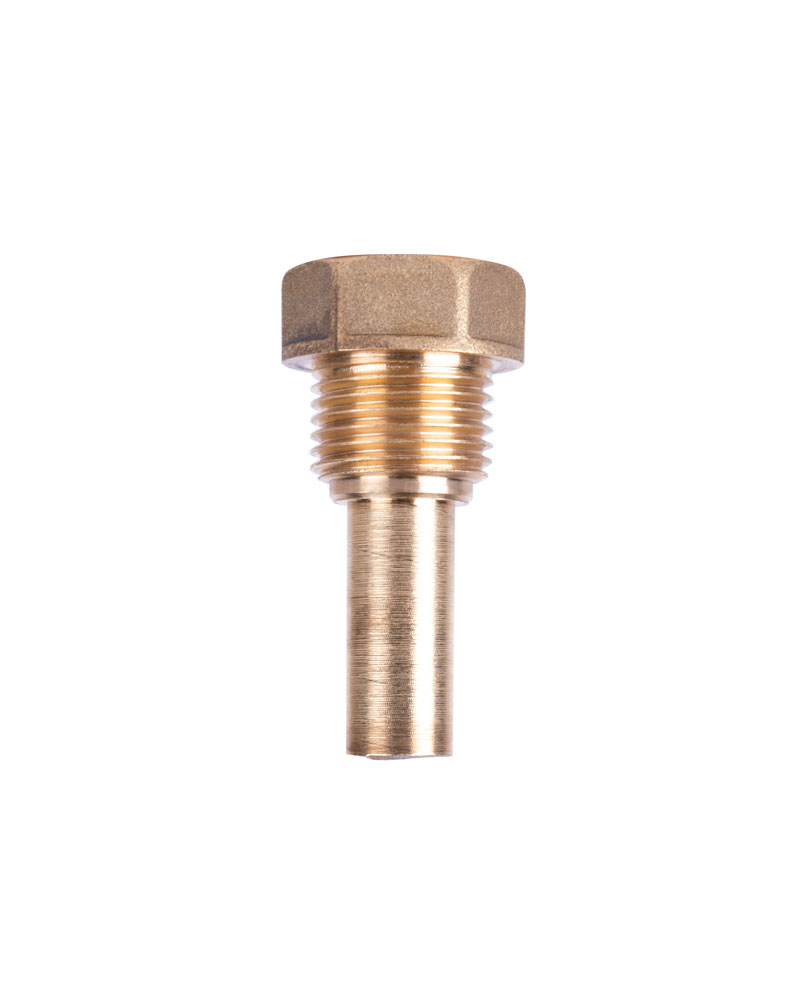

ITEM P
Information
Thermometer well for temperature
measurement with 1/2 BSP connection.
Material: brass
Technical specifications
DN: P (20×1) M (22×1)
PN: 16
ITEM 46
Information
Straight thermometer case with
1/2 BSP connection. Pressure plug
on request.
Tube material: brass
Technical specifications
DN: P (20×1) M (22×1)
PN: 16
ITEM 47
Information
90° angle thermometer case with
1/2 BSP connection. Pressure plug
on request.
Tube material: brass
Technical specifications
DN: P (20×1) M (22×1)
PN: 16
